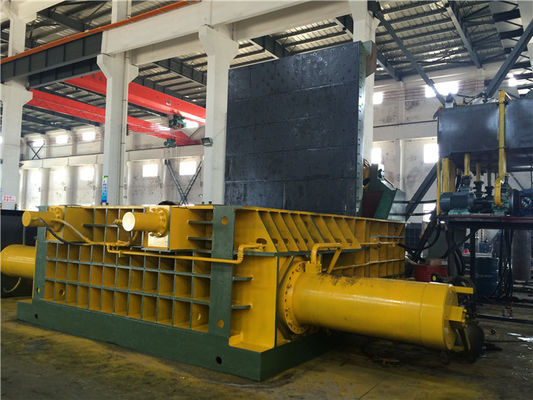

High Density Scrap Metal Press Machine Large Press Box Size Customized

Place of Origin Made in China
Brand Name DLK
Certification ISO9001
Model Number Y81K - 630
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Nude packing
Delivery Time 70 days
Payment Terms L/C, T/T
Supply Ability 3 sets /month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 380V,50HZ, Customized Production Rate(steel) 13 - 17 Tons / Hr
Bale Weight(steel) 1100 - 1760kg Shipping Weight Approx.130 Tons
Color Customized Cycle Time 110 Seconds
Press Box Size 4000*3000*1300 Bale Size 700*700
Motor 180 Kw Pump A7V160*4
High Light

Baling Press Machine

,

Hydraulic Baling Machine

Leave a Message
Product Description



Y81K - 600 Double Main Cylinder Hydraulic Baling Press Cuboid Block Scrap Metal Baler



Introduction



Y81 series hydraulic metal packaging can be all kinds of metal scrap (scrap, shavings, scrap steel, aluminum, copper, stainless steel scrap, scrap cars, etc.) squeezed into an octagonal shape, the shape of a cylinder and other qualified furnace, can reduce the transportation and smelting costs, but also improve the rate of investment furnace. This series baler is mainly used in steel mills, recycling industries, as well as nonferrous metal, ferrous metal smelting industry.


Specifications



1. Hydraulic metal baler



2. Bale-discharging :turn-out ,push-out, forward-out



3. Hydraulic drive ,manual valve operation or PLC control



4. Waste metal baler machine



5. Metal press baler machine



Features

1. All models use hydraulic drive, or manual or PLC control.

2. Variety of models to choose from: different pressures, material box size, mass, shapes and sizes.

3. Bale-discharging: "turn-out" package, and "push-out", "forward-out" discharging can be choosed.

4. Where no power supply can be powered with diesel engine





Technical Parameters



Power System

Rated Speed

Rated Power

Power Spec.

Lid cyl. Force

Side Pressure

cyl. Force

Main Pressure cyl. Force

Motor

2100 rpm

 kw/set

3ph,50/60 HZ

150 Ton

400 Ton

600 Ton















Small Door

cyl. Force

Hydraulic System Pressure

Idle Cycle

Time

Hydraulic System

Rated Displacement

Max. Operating

Pressure

Operating

System

18 Ton

55 Mpa

APPROX. 110 sec

Pump

50 mr/r

(/set)

31.5 Mpa

Manual Valve Operation; PLC Operation















Standard Operation



                  Optional  Configuration

A3 Steel Liners , Surface Heat Treatment

Cutting Blades and Teeth(2 sides)

Loading Hopper

Cooler / Heater

Diesel / Diesel

Generator for Power

High Density Scrap Metal Press Machine Large Press Box Size Customized 0

High Density Scrap Metal Press Machine Large Press Box Size Customized 1

Company Profile



Jiangsu Dalongkai Technology Co., Ltd is the professional manufacturer who is specialized in producing the balers, metal shears, metal scrap briquette machines, loose material baler and other hydraulic machinery. We provide both standard and customized design in large range of different machines. They are widely applied in industries of metal smelting, textile, fiber, paper-making, waste recycle, automobile, metal processing and so on.

Jiangsu Dalongkai Technology Co., Ltd was established in 2003 and we researched and produced the first hydraulic machine exported from us based on customer’s need. This made us begin to sell our products world wide. In order to enlarge our overseas market and improve our products quality, we especially established our trade company ---Jiangsu Dalongkai Technology Co., Ltd. Our trade company not only promotes our machinery, we also export different kinds of products by our professional sales team.
