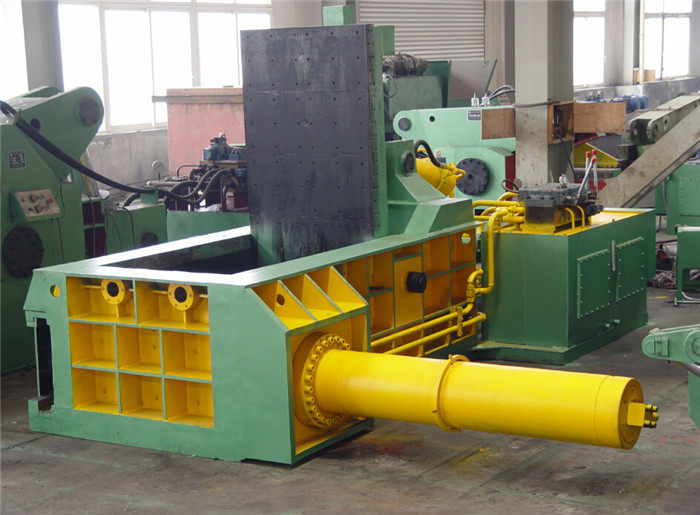

Manual Operation Metal Scrap Hydraulic Baler 15kW Power 4450*2700*2300mm

Place of Origin Made in China
Brand Name DLK
Model Number Y81F - 160C
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Nude packing
Delivery Time 40 days
Payment Terms L/C, T/T
Supply Ability 10 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size(L*W*H) 4450*2700*2300mm Press Box Size((L*W*H) 1400*900*700mm
Bale Weight(steel) 80-130kG Power 15kW
Application Scrap Metal Driven Type Hydraulic
Shipping Weight Approx. 10.2 Ton Quality Grade A
High Light

hydraulic baling machine

,

hydraulic scrap baling press

Leave a Message
Product Description

Manual Operation Metal Scrap Baler Machine 15kW Y81F - 160C Type ​





Company Profile


Jiangsu Dalongkai Technology Co., Ltd is the professional manufacturer who is specialized in producing the balers, metal shears, metal scrap briquette machines, loose material baler and other hydraulic machinery. We provide both standard and customized design in large range of different machines. They are widely applied in industries of metal smelting, textile, fiber, paper-making, waste recycle, automobile, metal processing and so on. Our products are not only renowned in more than 30 provinces and cities in domestic market, but also have being sold popularly in more than dozens of countries and areas all over the world like Eastern Europe, West Europe, Middle East, Africa, Southeast Asia, Oceania, North America and South America etc.





Specifications


1. Hydraulic metal baler
2. Hydraulic drive ,manual valve operation or PLC control
3. Bale-discharging :turn-out ,push-out, forward-out
4. Waste metal baler machine
5. Metal press baler machine



Introduction


1. All machine modes adopt hydraulic driving. It can be operated with manual operation and PLC control.

2. The foot screw is not needed for the installation, and the diesel engine can be equipped as power.

3.The bale discharging is composed of types such as tilting and bale pushing.

4.The production efficiency ranges from 0.5 ton/hour to 20 ton/hour.

5.There are 8 grades for extrusion force from 63 tons to 400 tons.

6. The feed box size and bale shape and size can be customized.

7.designed according to the raw material specification of customers.





Advantages

1. Our baler machine under 250 ton is integral structure. Hydraulic station connects with the host machine together. So it doesn’t need to install. One machine puts in one 20" container. And it saves ship cost.
2. Our company use high-strength wear-resistant plate import from America, the plates are available 15 years, do not need to change, the price is as 5 times as the common, common plate life is three years.
3. We use good quality seals, so no oil leak.
4. Inner blades, water cooler, protective net, hosepipe, flange, big pressure head, relief valve, oil temperature gauge.





Technical parameters



Power system

Rated Speed

Rated Power

Power Spec.

Lid cyl. Force

Front Door

cyl. Force

Main Pressure cyl. Force

Motor

1460 rpm

15 kw

3ph,50/60 HZ

63 Ton

2*24Ton

160Ton















Max.Operating

Pressure

Hydraulic System Pressure

Idle Cycle

Time

Hydraulic System

Rated Displacement

Operating  System



31. 5 Mpa

25mpa

APPROX. 100 Sec.

Pump



63 mr/r



PLC Operation

Manual valve operation















Standard Operation



     Optional  Configuration

A3 Steel Liners , Surface heat Treatment

Cutting Blades and teeth(2 sides)

Cooler / Heater

Diesel / Diesel

Generator for power
