Scrap Metal Shredder Machine High Capacity Saving Labor Color Customized

China JiangSu DaLongKai Technology Co., Ltd certifications
I'm Online Chat Now

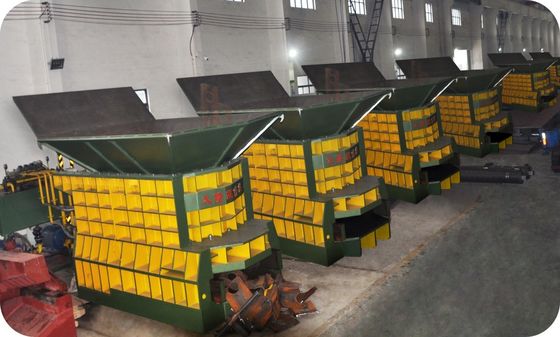

Scrap Metal Shredder Machine High Capacity Saving Labor Color Customized

Scrap Metal Shredder Machine High Capacity Saving Labor Color Customized
Scrap Metal Shredder Machine High Capacity Saving Labor Color Customized Scrap Metal Shredder Machine High Capacity Saving Labor Color Customized Scrap Metal Shredder Machine High Capacity Saving Labor Color Customized

Large Image :  Scrap Metal Shredder Machine High Capacity Saving Labor Color Customized

Product Details:

Place of Origin: made in china
Brand Name: DLK
Certification: ISO9001
Model Number: WS-500

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: nude packing
Delivery Time: 30 days
Supply Ability: 10 set/ month
Detailed Product Description
Capacity: 6-9ton Per Hour Nominal Force: 500Ton
Voltage: 380V/3HP 50HZ,Customized Shear Time: 2-4time / Min
Motor: 90KW Shear Height: 300/420mm
Pump: A7V160*2 Blade Length: 1400mm
High Light:

scrap shearing machine

,

hydraulic scrap shear

Container Style Scrap Metal Shear WS - 5000 , Roll On / Off System



Advantages


compared to common guillotine shears ,the advantages of the horizontal shear can be summarised as follows:



1. Low specific investment and running costs; continual loading of the shear in the feed hopper with simultaneous ejection of the cut scrap

2. Shear control carried out by grabber crane operator no additional operator needed, self-enclosed operation with integrated diesel engine

3. Efficient one-man loading, cutting and removal from one or several container shears using a digger

4. Collection and transport by towing vehicle for transport containers or flat bed trailer

5.  compared to stationary shears,little space is required.

6. No assembly and foundation costs are needed for operation

7. Thanks to the horizontal cut with a large guided blade carriage there is little wear
the forces working on the blade carriage always tend towards the centre, avoiding twisting forces





Applications

Scrap shear is used for economical  scrap processing, easy operation and flexible transportation with

a roll on/roll off system. Various models for your choice.HPM series of horizontal balers with manual belting.



Feature



1. High security

When the machine is in the operating state, these wastes in the work bin will not splash out.
2. High productivity, saving labor costs

This machine equipped with suction pad is completely automatic, as long as one person can finish all     operations.
3. Removable

The removable machine is able to work anywhere, which really cuts transportation costs for customers.




Technical Specificarions

Remark

Shear cylinder





model

     YG340/220-1000



2 sets



Nominal pressure

2500KN*2



Trip



1000MM



press cylinder

model

  YG280/220-800

1 set

Nominal pressure

1500KN

Trip

800MM

motor

model

Y250M-6

Power

45kw



speed



980 R / MIN

Quantity

2 sets

oil pump

Model

HY250Y-RP

Pressure

31.5 mpa



Oil flow



 250 ml / r

Quantity

2 sets

cooling system

model

FCE-75P-C

Quantity

1 set



Scrap Metal Shredder Machine High Capacity Saving Labor Color Customized 0
