Scrap baling Machine / Hydraulic Metal Baler For Waste Aluminum , Stainless Steel
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Nominal Force | 63Tons ~500Tons | Voltage | 380V,50HZ, Customized |
|---|---|---|---|
| Automatic Grade | Semi-Automatic | Bale Weight（kg) | 300-800kg |
| Machine Size | Medium Machine | Power | 7.5KW~110kW |
| High Light | Scrap Baling Machine,Baling Press Machine |
||
Product Description

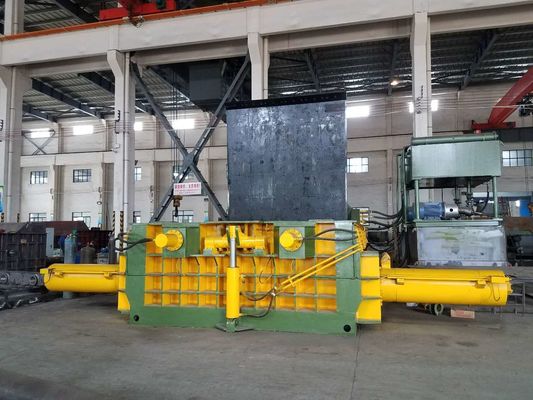

Y81T Hydraulic Baling Press , 22 - 4*45 KW , Push-out Baler With Hydraulic Drive
Y81T Series
Y81 series metal hydraulic baler is capable of extruding various metal leftover materials, steel parting, waste copper, aluminum, copper, stainless steel and scraped car material into qualified charging such as square column, cylinder, octagon body and other sharps, in a bid to reduce transportation &refining costs, and increase transportation speed. It is unnecessary to fix foot screws and a diesel engine can be used in case of power supply unavailability.The extrusion force ranges from 63t to 400t, totaling10 grades for customers’ selection,and productivity being from 4t/shift to 40t / shift.The size of the compression chamber and the form and size of the bale can be designed and customized according to the requirements of the customers.
Technical Paraments
|
Model |
Main Cyl.Force(ton) |
Press Box Size(mm) |
Bale Size(mm) |
Bale Weight(kg) |
Motor(KW) |
|
Y81T-125A |
125 |
1200*700*600 |
240*240 |
40-50 |
18.5 |
|
Y81T-125B |
125 |
1400*700*700 |
300*300 |
60-90 |
22 |
|
Y81T-125D |
125 |
1400*1000*700 |
300*300 |
70-100 |
45 |
|
Y81T-160A |
160 |
1600*1000*800 |
350*350 400*400 |
100-180 |
22 |
|
Y81T-160B |
160 |
1600*1200*800 |
350*350 400*400 |
100-200 |
45 |
|
Y81T-200A |
200 |
1600*1000*800 |
400*400 |
120-220 |
45 |
|
Y81T-200B |
200 |
1600*1200*800 |
400*400 |
120-220 |
45 |
|
Y81T-200C |
200 |
1800*1400*900 |
500*500 |
180-350 |
2*22 |
|
Y81T-250A |
250 |
2000*1400*900 |
400*400 |
200-450 |
2*30 |
|
2000*1400*1000 |
500*500 |
||||
|
Y81T-250C |
250 |
2000*1400*1200 |
450*450 500*500 |
250-450 |
2*30 |
|
Y81T-250D |
250 |
2000*1750*1200 |
500*500 |
250-450 |
2*30 |
|
Y81T-315A |
315 |
2000*1750*1200 |
500*600 |
300-500 |
2*45 |
|
Y81T-315B |
315 |
2500*2000*1200 |
600*600 |
400-700 |
2*45 |
|
2600*2000*1200 |
500*600 |
||||
|
Y81T-400C |
400 |
3000*2000*1200 |
600*700 |
500-800 |
2*45 |
|
Y81T-400D |
400 |
5000*2000*1200 |
700*700 |
600-900 |
3*45 |
|
Y81T-400E |
400 |
2600*2000*1200 |
500*600 |
400-700 |
2*45 |
|
Y81T-500 |
500 |
1600*1000*900 |
300*300 |
130-160 |
2*45 |
|
Y81T-600 |
600 |
2800*2000*1400 |
500*500 530*530 |
500-800 |
4*45 |
