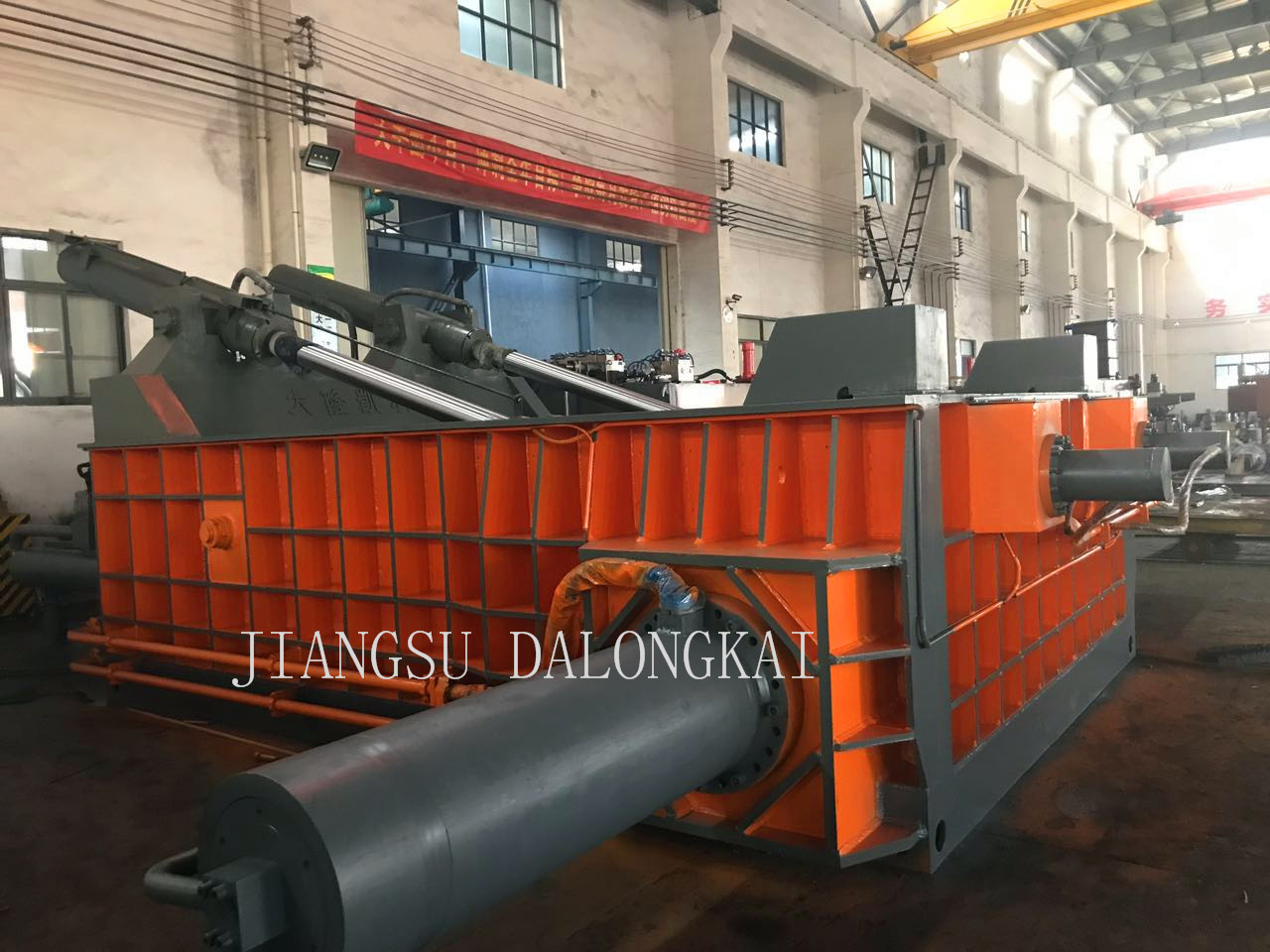

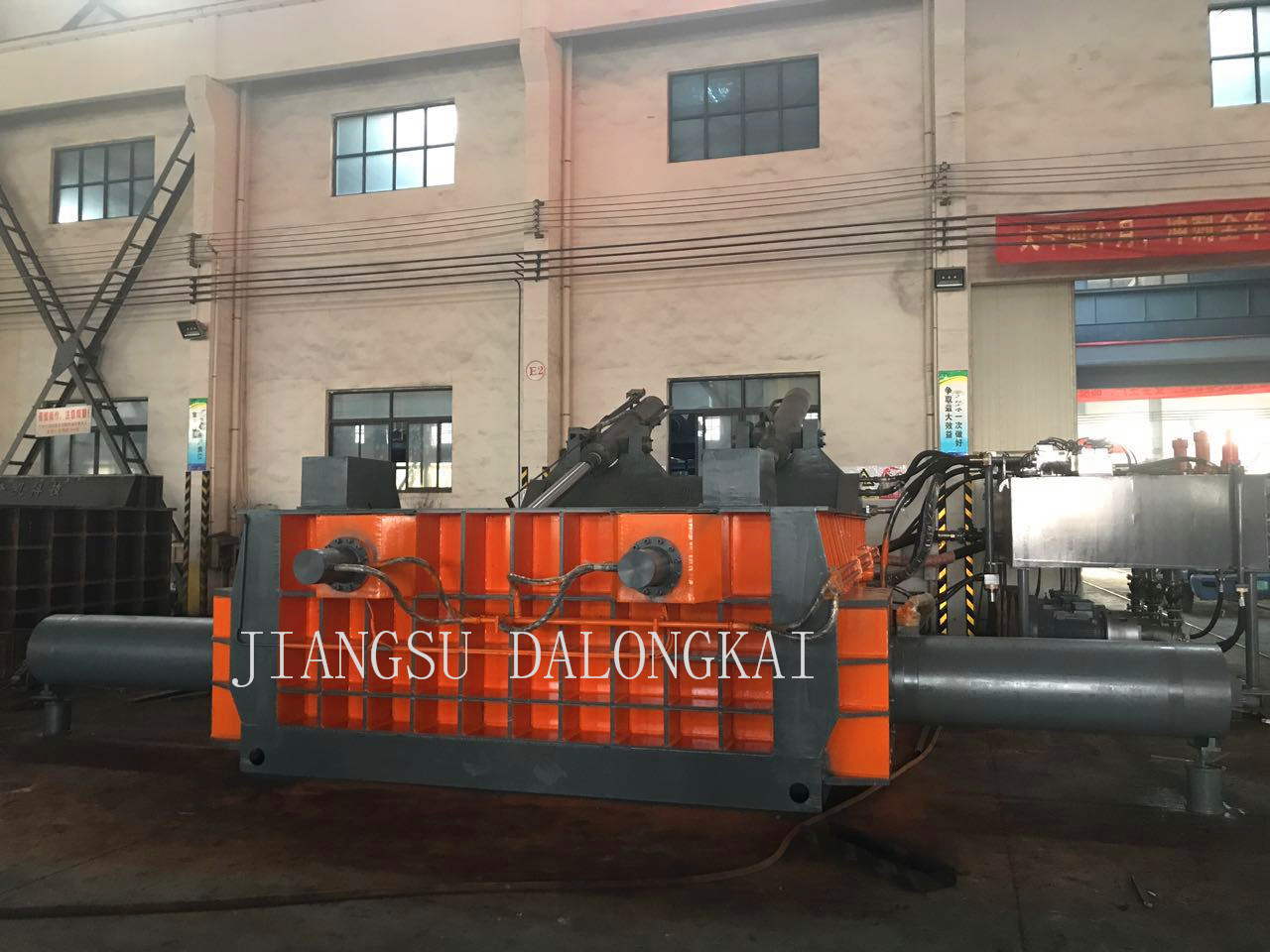

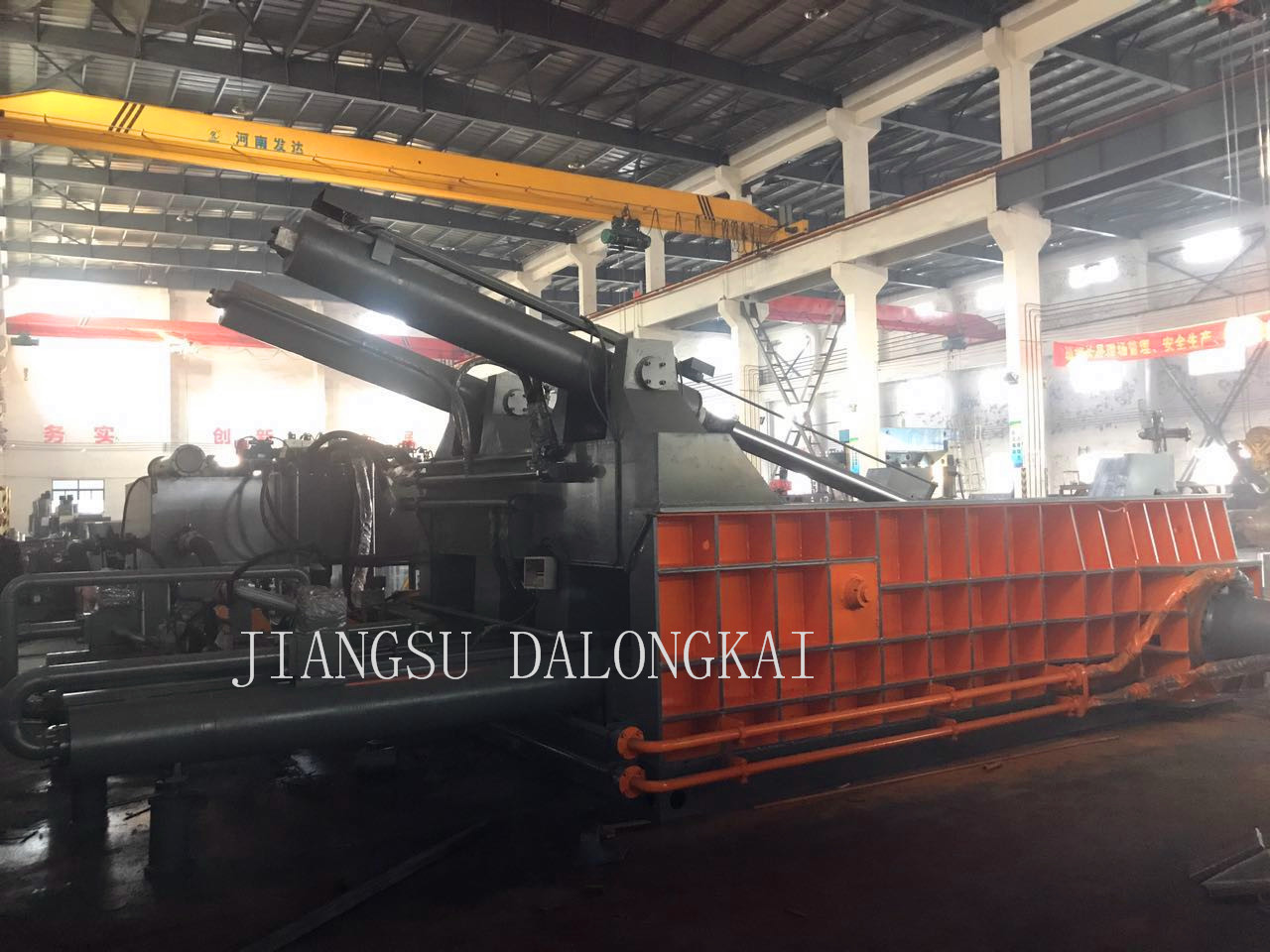

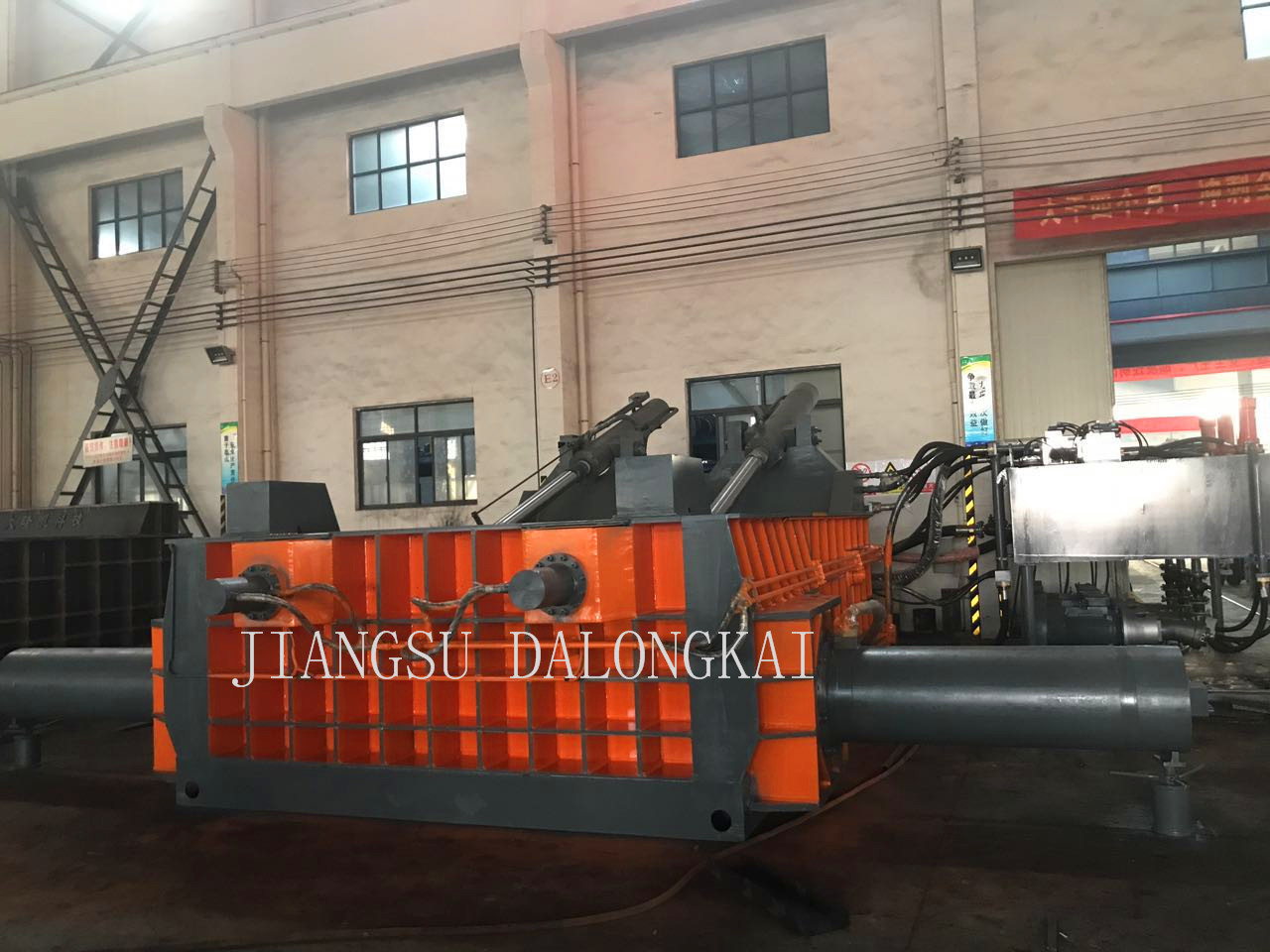

Y81K-400 Hydraulic Scrap Metal Baling Machine with Double Main Cylinders

Place of Origin Made in China
Brand Name DLK
Certification ISO9001
Model Number Y81K- 400
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Nude packing
Delivery Time 60 days
Payment Terms L/C, T/T
Supply Ability 5 sets /month
Product Details
Voltage 380V,50HZ,Customized Production Rate(steel) 8-12 Bales / Hour
Bale Weight(steel) 1100 - 1760kg Shipping Weight Approx.72 Tons
Color Customized Press Box Size 3500×3000×1300mm
Bale Size 600×600mm Motor 45KW*3
Single Cycle Time About 120 Seconds Bale Discharging Mechanical Bale Out
High Light

Scrap Baling Machine

,

Baling Press Machine

Leave a Message
Product Description



Y81F - 400 Double Main Cylinder Hydraulic Baling Press Cuboid Block Scrap Metal Baler





Scope of application : metal scrap (scrap shavings, scrap steel, aluminum, copper, stainless steel scrap, scrap cars, etc.





Shape of the bale :cuboid shape , octagonal shape, cylinder shape and other qualified furnace shape.





Advantages : 1.reducing the transportation and smelting costs
                        2.improvig the rate of investment furnace.


Machine use location  :mainly used in steel mills, recycling industries, as well as nonferrous metal, ferrous metal smelting industry.


Specifications

1 Main Cylinder Model YG400/280 Number 2 SET
    Norminal Force 3150KNX2 Stroke 900mm
2 Side Cylinder Model YG250/160 Number 3 SET
    Norminal Force 1200KNX3 Stroke 2450mm
3 Door Cylinder Model YG250/160 Number 2 SET
    Norminal Force 1200KNX2 Stroke 2250mm
4 Locking cylinder Model YG160/100 Number 2 SET
    Norminal Force 500KNX2 Stroke 100mm



Features

1.We will  give a  pair of razor blades as a present.

2. All models can use hydraulic drive  or manual or PLC control.

3.Variety of models to choose from: different pressures, material box size, mass, shapes and sizes.

4. Bale-discharging: "turn-out" package, and "push-out", "forward-out" discharging can be choosed.

5.Where no power supply can be powered with diesel engine







Y81K-400 Hydraulic Scrap Metal Baling Machine with Double Main Cylinders 0






Company Profile



Jiangsu Dalongkai Technology Co., Ltd is the professional manufacturer who is specialized in producing the balers, metal shears, metal scrap briquette machines, loose material baler and other hydraulic machinery. We provide both standard and customized design in large range of different machines. They are widely applied in industries of metal smelting, textile, fiber, paper-making, waste recycle, automobile, metal processing and so on.
